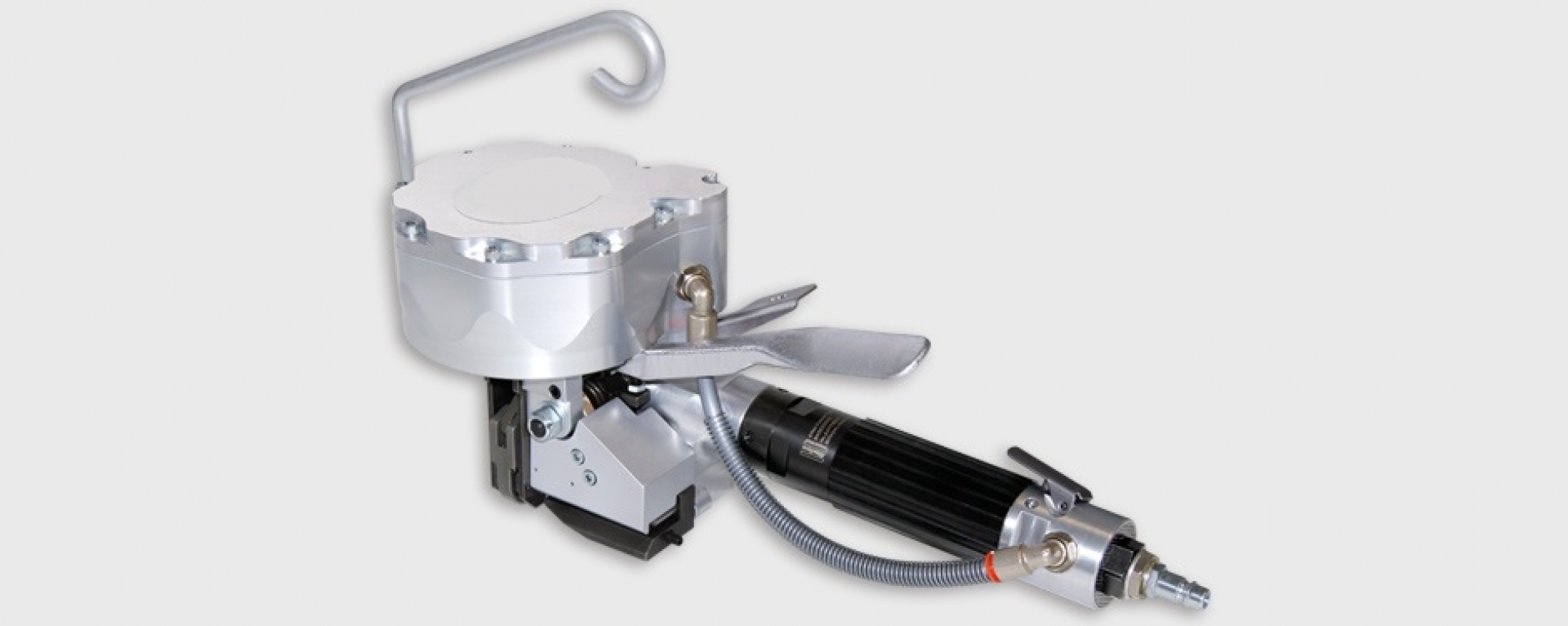

The pneumatic strapping tool for steel strap, model FSA-13, can seal the strap through a single notch.
In the next table, we will point out the technical characteristics of this product:
| CHARACTERISTICS OF FSA-13 | |
|---|---|
| Type of strap | Steel |
| Width and thickness | 13mm x 0,40mm – 0,80mm |
| Dimensions | |
| Length | 350mm |
| Width | 140mm |
| Height | 170mm |
| Weigth | 4 Kg |
| Feeding | |
| Working pressure | 5,5-7 bars / 78-99 psi |
| Air consumption | 12 L/s – 25cuft/min |
| Performance | |
| Max. strap tension | 2000N – 5500N – 7500N 6 bars – 87 psi |
| Tensioning speed | 12 mt/m @ 2000N |
| 5 mt/m @ 5500N | |
| 4 mt/m @ 7500N | |
| Sealing | Single notch |
| Sealing strength | 75-80% of the strap breaking load* |
* Variable depending on the strap type
Assistance and supply of spare parts in 48/72hours.
