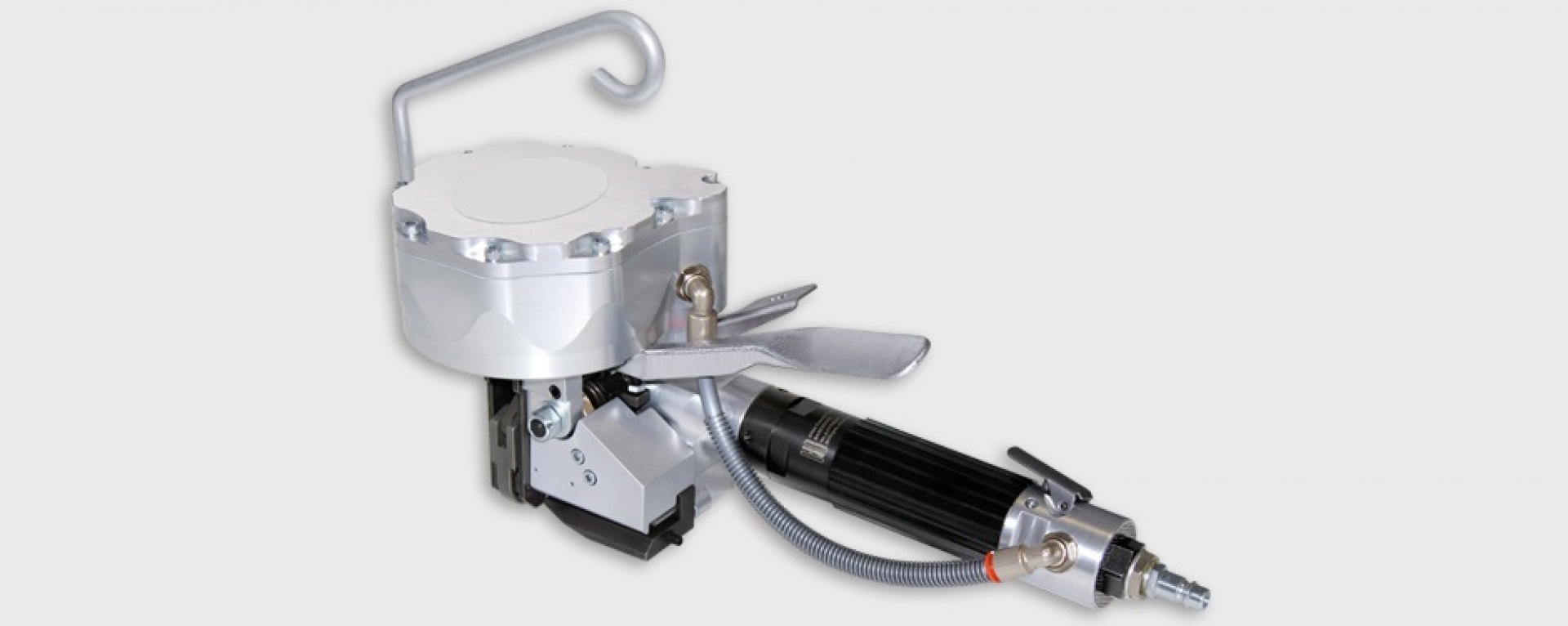

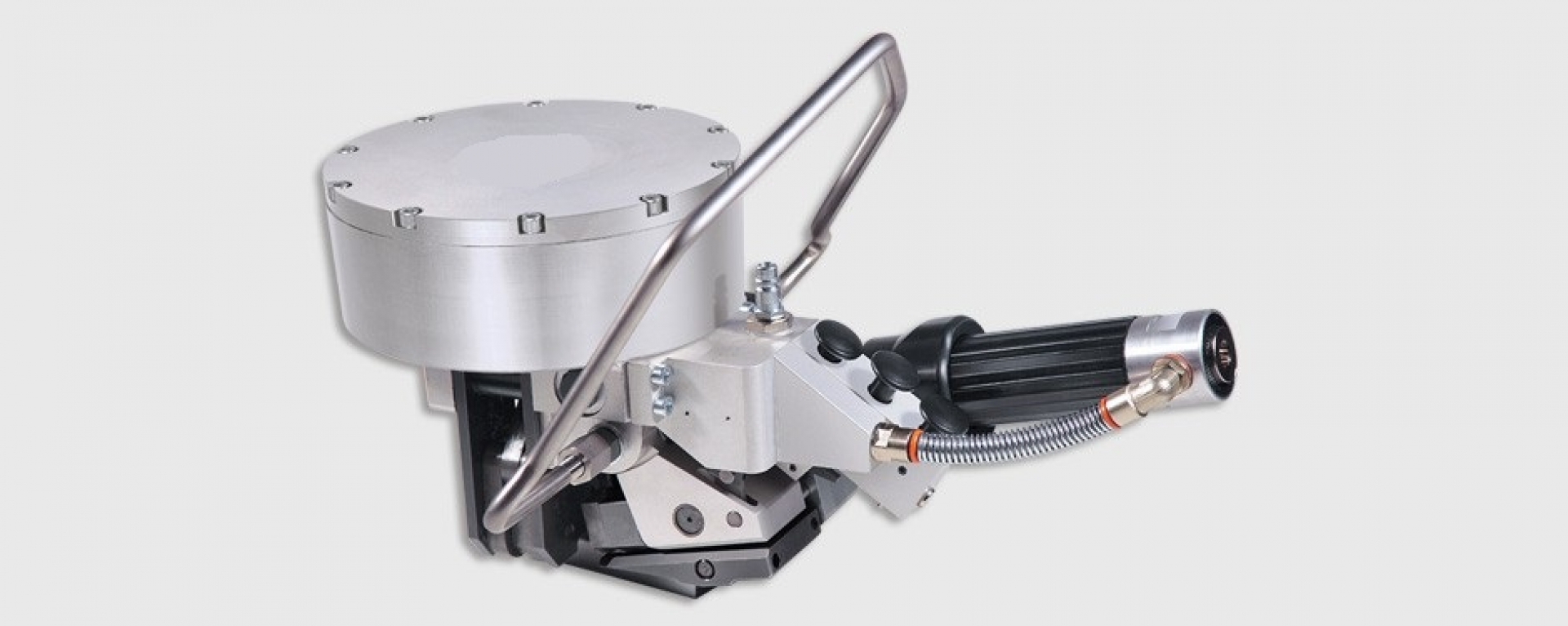

The pneumatic strapping tool for steel strap, model FSA-19, can seal through a single or double notch.
In the next table, we will point out the technical characteristics of this product:
| CHARACTERISTICS OF FSA-19 | |
|---|---|
| Type of strap | Steel |
| Width and thickness | 19mm x 0,40mm – 0,80 / 1mm |
| Dimensions | |
| Length | 350mm / 430 mm |
| Width | 140mm / 260 mm |
| Height | 170mm / 310 mm |
| Weight | 4 kg / 10,3 kg |
| Feeding | |
| Working pressure | 5,5-7 bars / 78-99 psi |
| Air consumption | 12 L/s – 25cuft/min |
| Performance | |
| Max. Strap tension | 2000N–5500N-7500N-9000N 6 bars – 87 psi |
| Tensioning speed | 12 mt/m @ 2000N |
| 5 mt/m @ 5500N | |
| 4,5 mt/m @ 9000N | |
| 4 mt/m @ 7500N | |
| Sealing | Single or double notch |
| Sealing strength | 75-80% of the strap breaking load* |
* Variable depending on the strap type
After years of experience in the industry, SAIZAR staff uses this knowledge to keep innovating and developing its product range.
