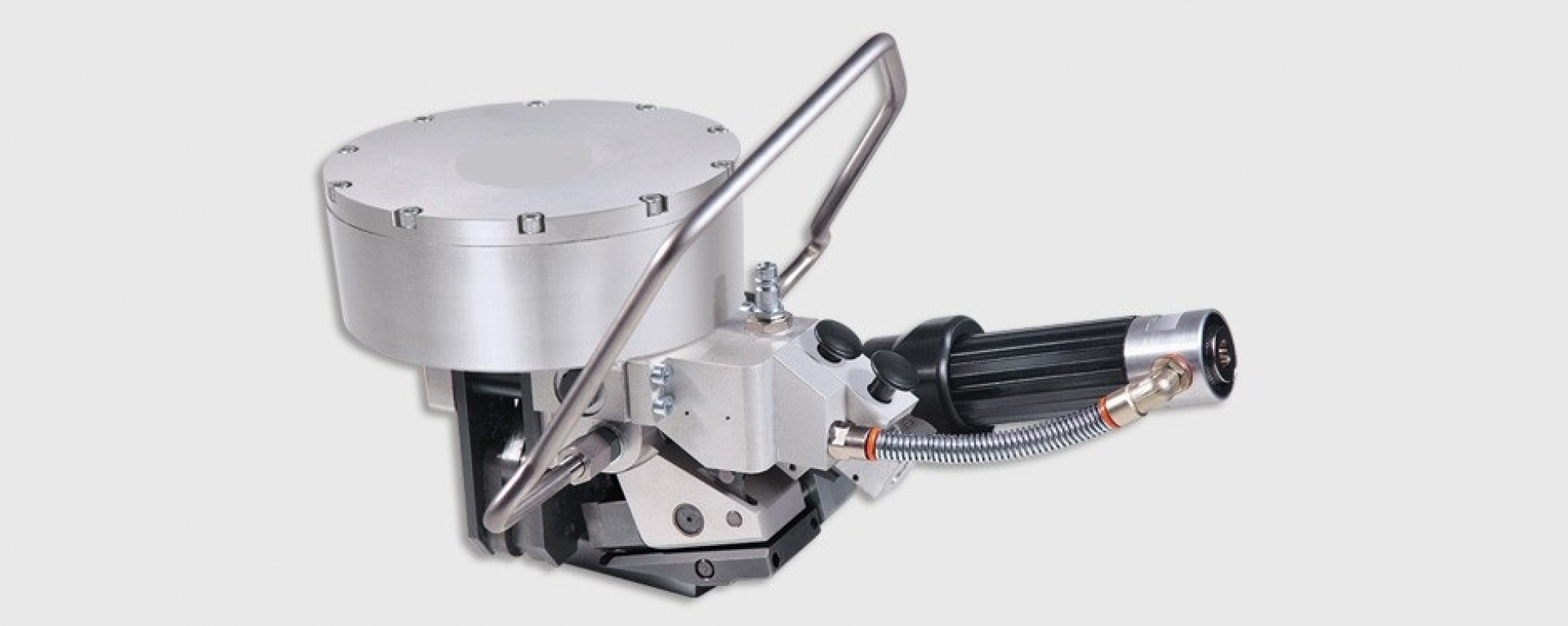

The pneumatic strapping tool for steel strap, model FSA-25/32, can seal the strap through double notches.
In the next table, we will point out the technical characteristics of this product:
| CHARACTERISTICS OF FSA-25/32 | |
|---|---|
| Type of strap | Steel |
| Width and thickness | 25mm x 0,40mm – 1mm |
| 32mm x 0,40mm – 1mm | |
| Dimensions | |
| Length | 430mm |
| Width | 260mm |
| Height | 310mm |
| Weight | 10,3 Kg |
| Feeding | |
| Working pressure | 5,5-7 bars / 78-99 psi |
| Air consumption | 12 L/s – 25cuft/min |
| Performance | |
| Max. strap tension | 15000N- 6 bars – 87 psi |
| Tensioning speed | 4 mt/m @ 15000N |
| Sealing | Double notches |
| Sealing strength | 75-80% of the strap breaking load* |
* Variable depending on the strap type
We supply spare parts for all kind of strapping machines, as well as for steel and polyester strap.
