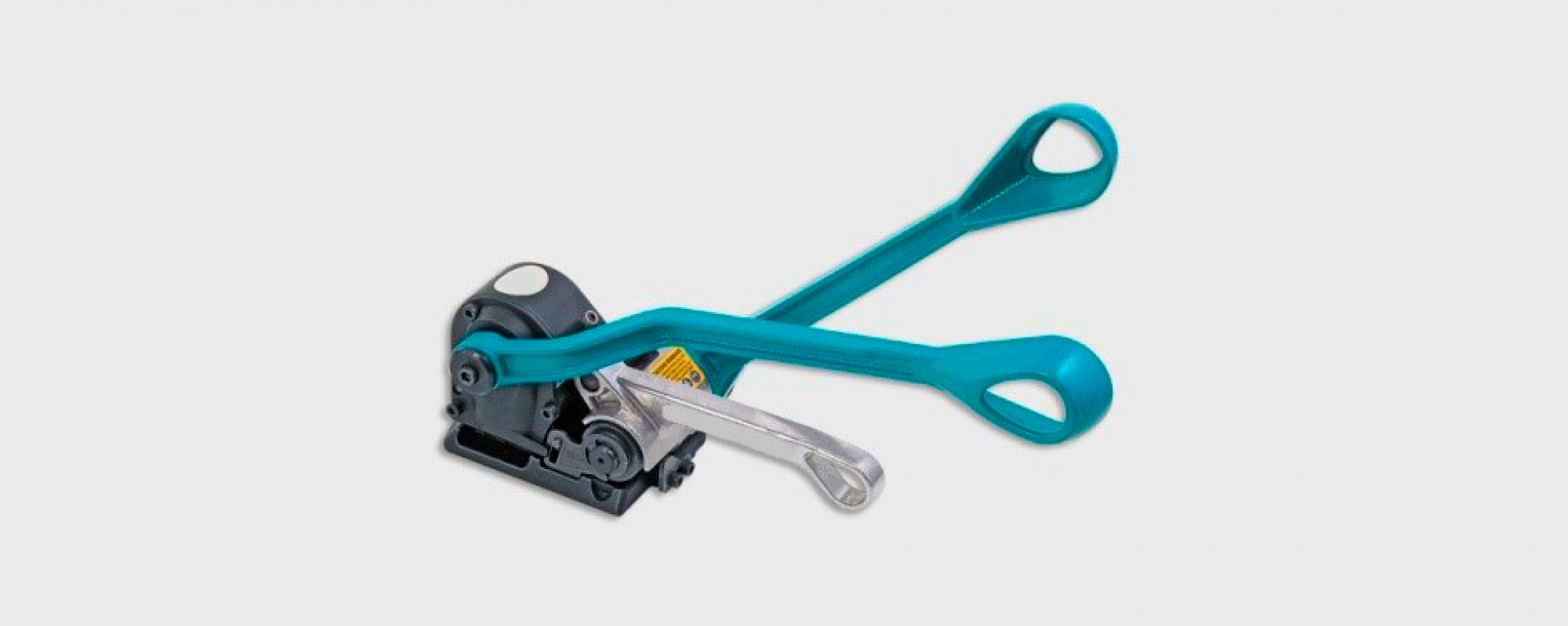

The manual strapping tool for steel strap, model FSM-13/16/19, can seal the strap through assembly.
In the next table, we will point out the technical characteristics of this product:
| CHARACTERISTICS OF FSM-13/16/19 | |
|---|---|
| Type of strap | Steel |
| Width and thickness | 13mm x 0,45 mm- 0,80 mm |
| 16mm x 0,45 mm- 0,80 mm | |
| 19mm x 0,45 mm- 0,80 mm | |
| Dimensions | |
| Length | 350mm |
| Width | 140mm |
| Height | 260mm |
| Weight | 4,4 Kg |
| Performance | |
| Max. strap tension | 5500N |
| Transmission ratio | 1:18 |
| Sealing | Assembly |
| Sealing strength | 75-80% of the strap breaking load * |
* Variable depending on the strap type
