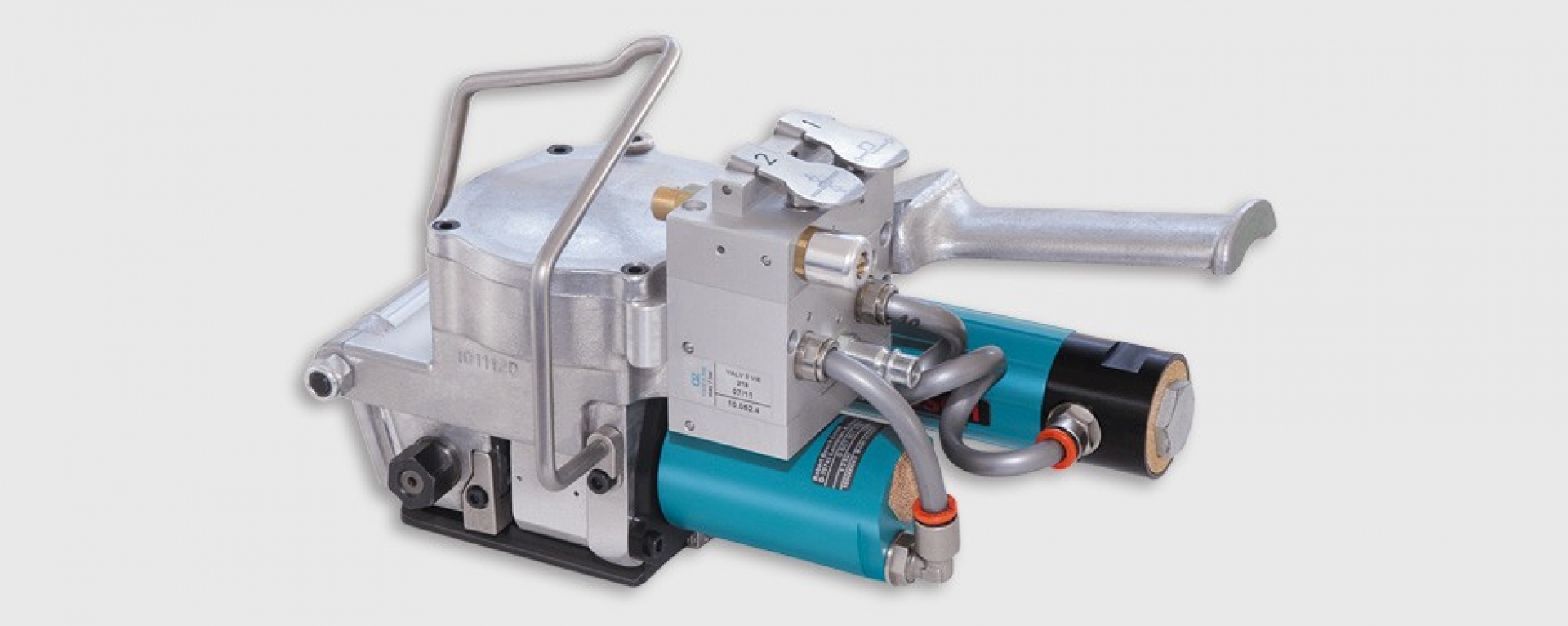

The pneumatic strapping tool for polyester or polypropylene strap, model FSP-10, can seal the strap through vibration.
In the next table, we will point out the technical characteristics of this product:
| CHARACTERISTICS OF FSP-10 | |
|---|---|
| Type of strap | Polyester |
| Polypropylene | |
| Width and thickness | 10mm x 0,40mm - 1,2mm |
| Dimensions | |
| Lenght | 280mm |
| Width | 150mm |
| Height | 175mm |
| Weight | 4,9 Kg |
| Feeding | |
| Working pressure | 4,5 - 7 bar / 64 - 99 psi |
| Air consumption | 14 L/s – 29 cuft/min |
| Performance | |
| Max. Strap tension | 2500 N - 6.5 bar - 92psi (Adjustable with friction) |
| Tensioning speed | 11 mt/m @ 2500N |
| Sealing | Vibration |
| Sealing strength | 75-80% of the strap breaking load * |
* Variable depending on the strap type
After years of experience in the industry, SAIZAR staff uses this knowledge to keep innovating and developing its product range.
