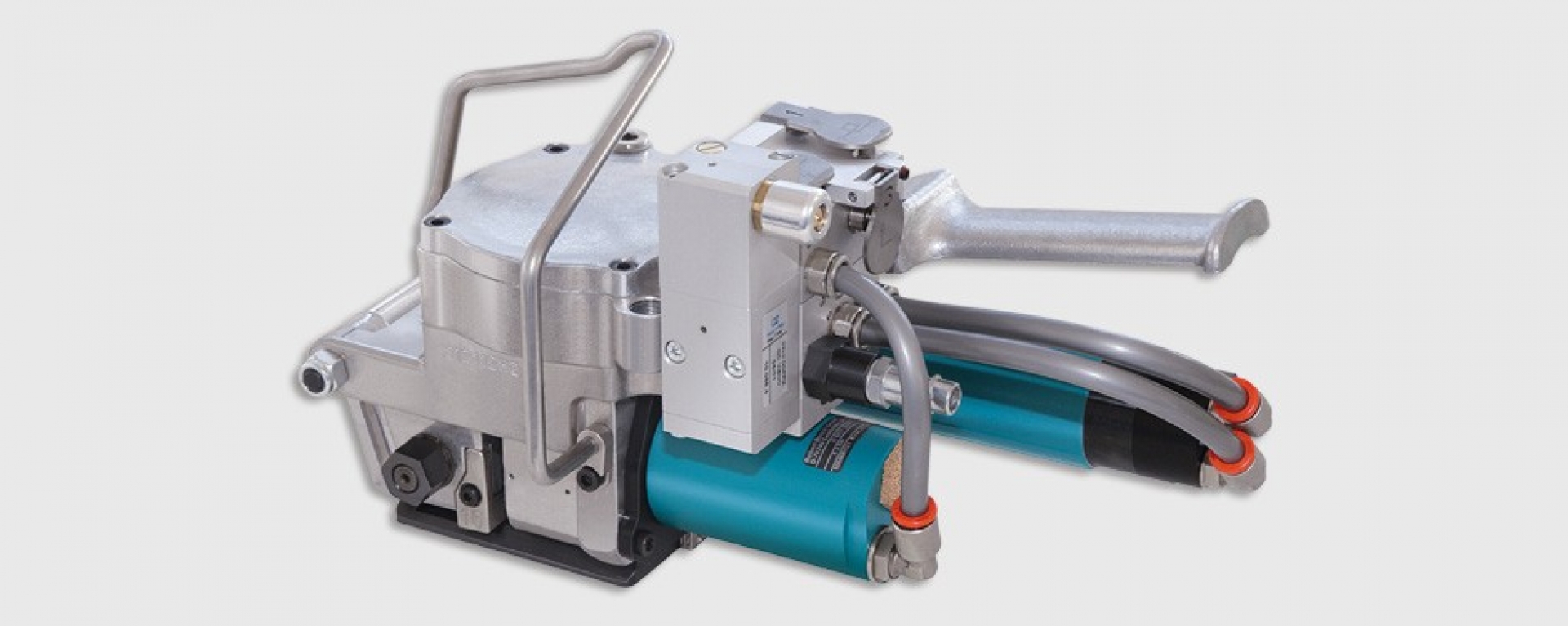

The pneumatic strapping tool for polyester or polypropylene strap, model FSP-25/32, can seal the strap through vibration.
In the next table, we will point out the technical characteristics of this product:
| CHARACTERISTICS OF FSP-25/32 | |
|---|---|
| Type of strap | Polyester |
| Polypropylene | |
| Width and thickness | 25-32mm x 0,8mm - 1,27mm |
| Dimensions | |
| Length | 300mm |
| Width | 160mm |
| Height | 175mm |
| Weight | 5,8 kg |
| Feeding | |
| Working pressure | 6 - 7 bar / 87 - 99 psi |
| Air consumption | 14 L/s - 29 cuft/min |
| Performance | |
| Max. strap tension | 5000N |
| 6000N | |
| Tensioning speed | 6 mt/min 5000N |
| 4 mt/min 6000N | |
| Sealing | Vibration |
| Sealing strength | 75-80% of the strap breaking load* |
* Variable depending on the strap type
We provide technical assistance for automatic and pneumatic strapping machines of other brands.
